هند کنترل و کارت خوان مخصوص دستگاه سی ان سی مدل CN1610 PRO

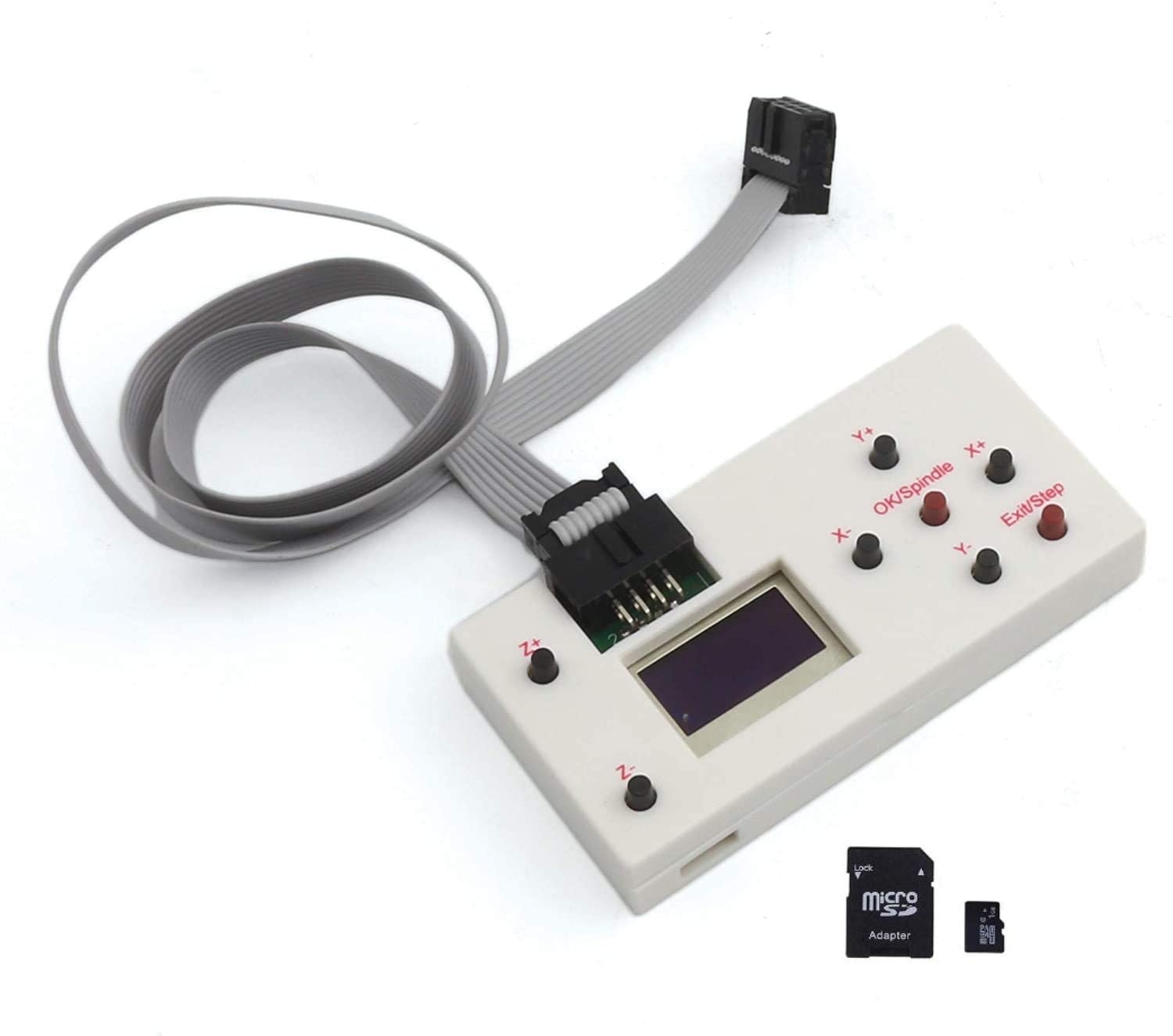

Package include:

1 set of offline hand controller board

1 set of cable

1 set of SD card

Specification:

Press Z+ and Z- , the Z axis will move up and down.

Press X+ and X- , the X axis will move left and right.

Press Y+ and Y- , the Y axis will move Front and Back.

Press SPIN : Spindle on (Laser on ), Spindle off (laser off)

Press SMOD: return

Press Z+ for 5 seconds , change the Language to English.

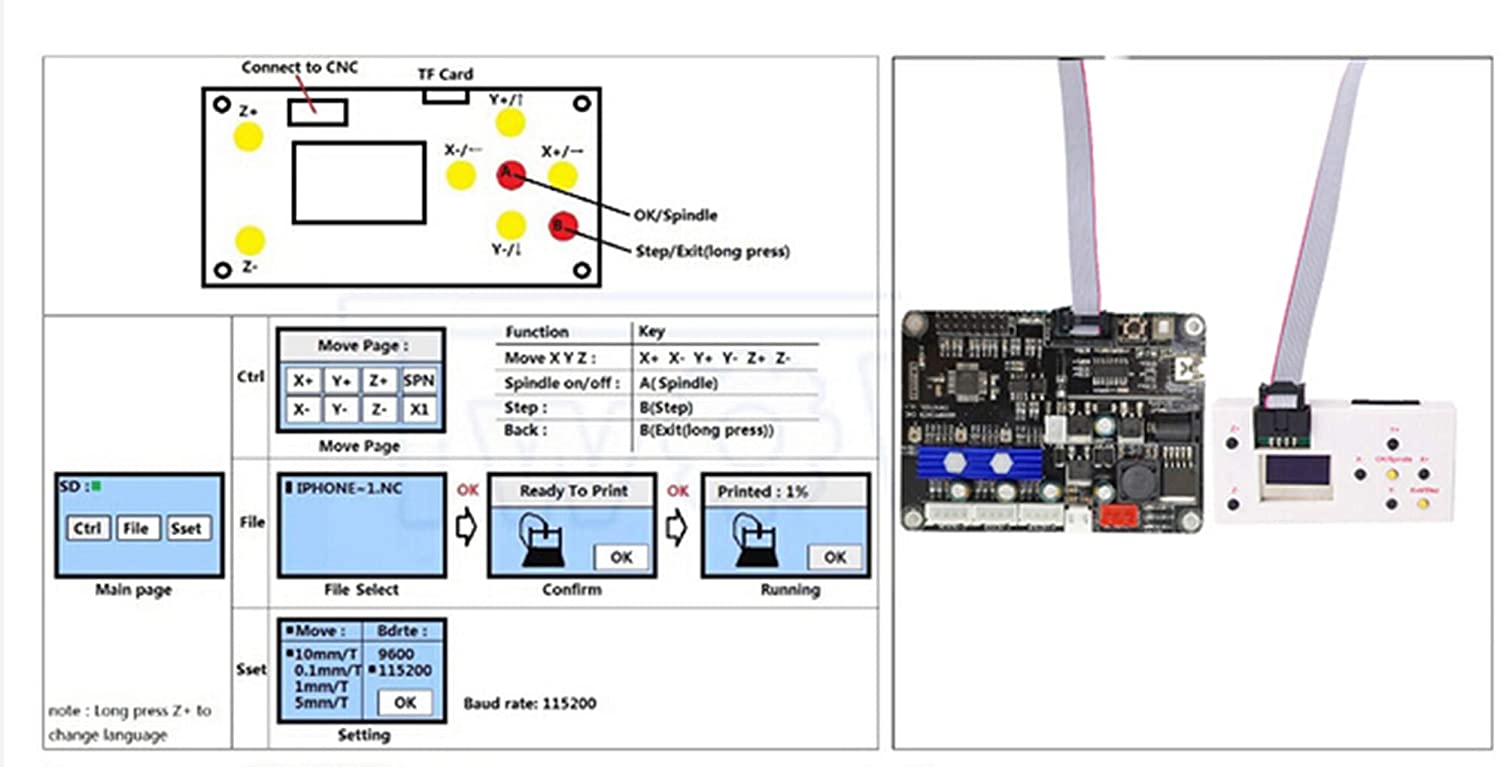

Press X- or X+ button to switch

Control：Press confirmation button to access manually controlling page

File：Press confirmation button to access file page

Set：Press confirmation button to access setting page

On the off-line controller, buttons control corresponding actions.

SPN is spindle controlling,should press SPIN.

Fan is fan controlling, should press SMOD.

Common supported formats include nc. tex. tap.

Press [Y+] [Y-] to select file

Press [Ok] to Enter

Press [Ok] to begin if you are ready

Note:Long press [Exit] to stop machining

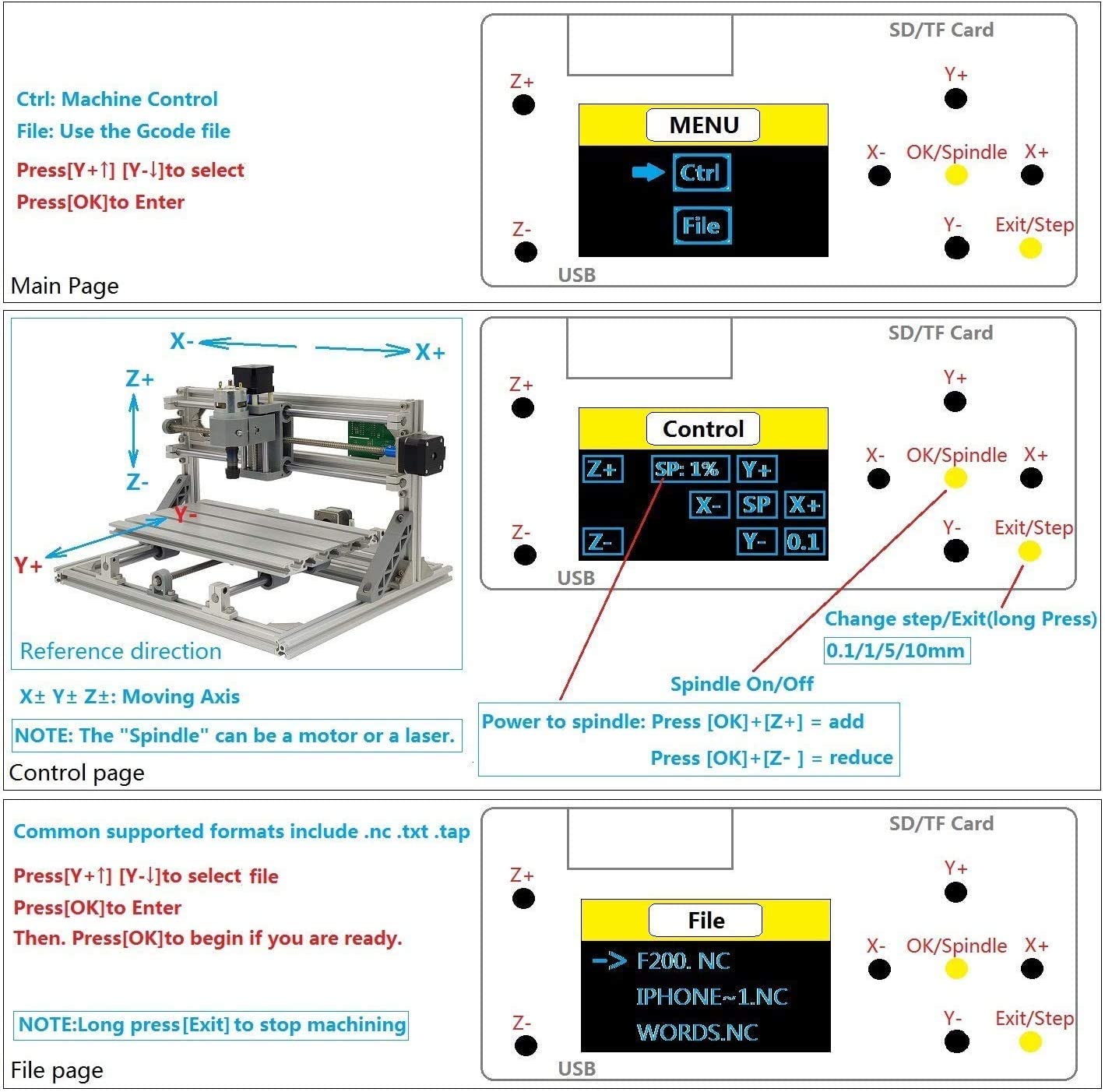

X± Y± Z±: Moving Axis

OK/Spindle: Spindle ON/OFF

Exit/Step: Change Step/Exit (long press)

How to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Z+ button simultaneously to increase the speed.

How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed.

Main Page

Ctrl: Machine Control

File: Use the Gcode file

Press [Y+] [Y-] to select

Press[Ok] to Enter
